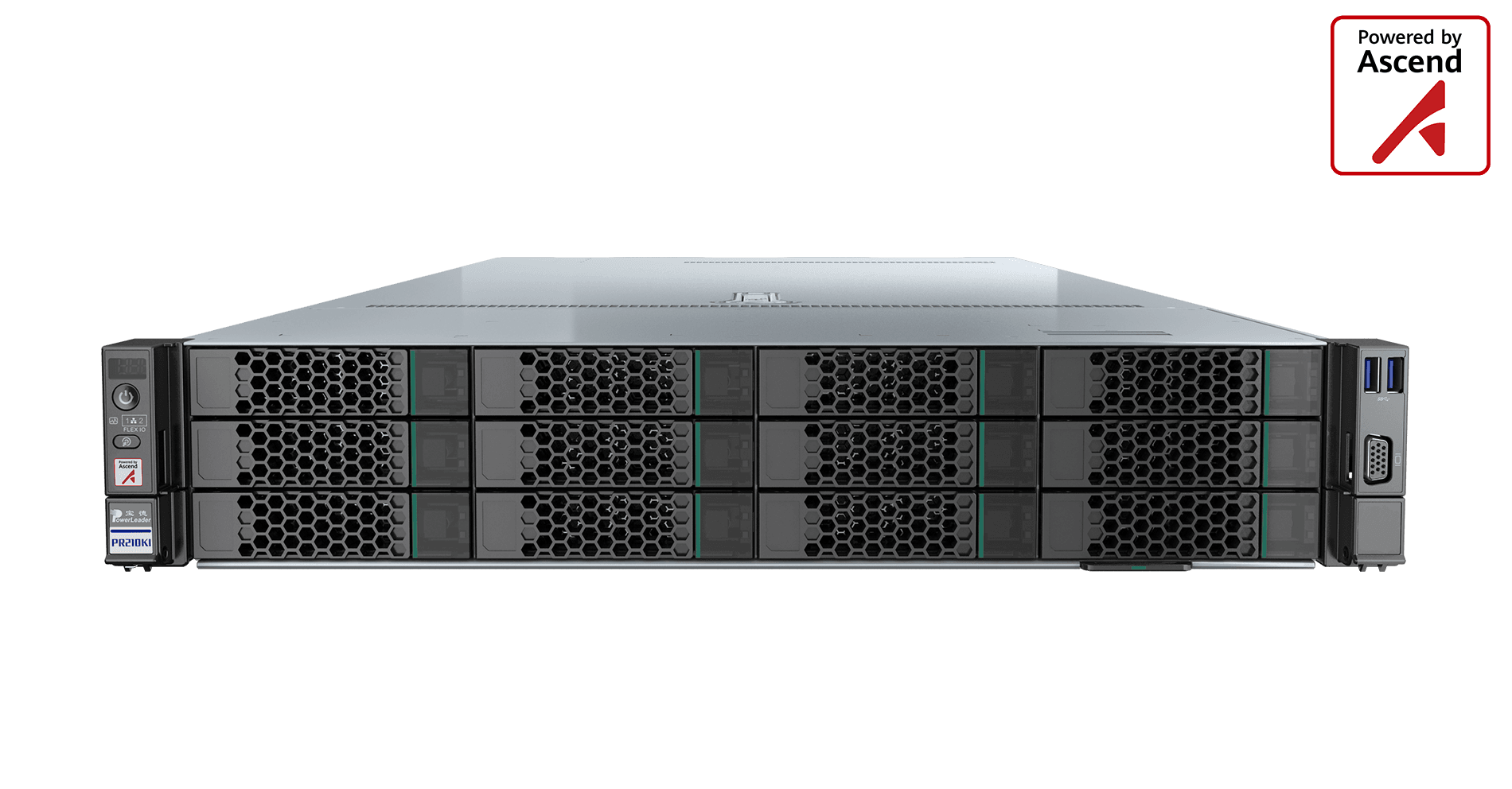

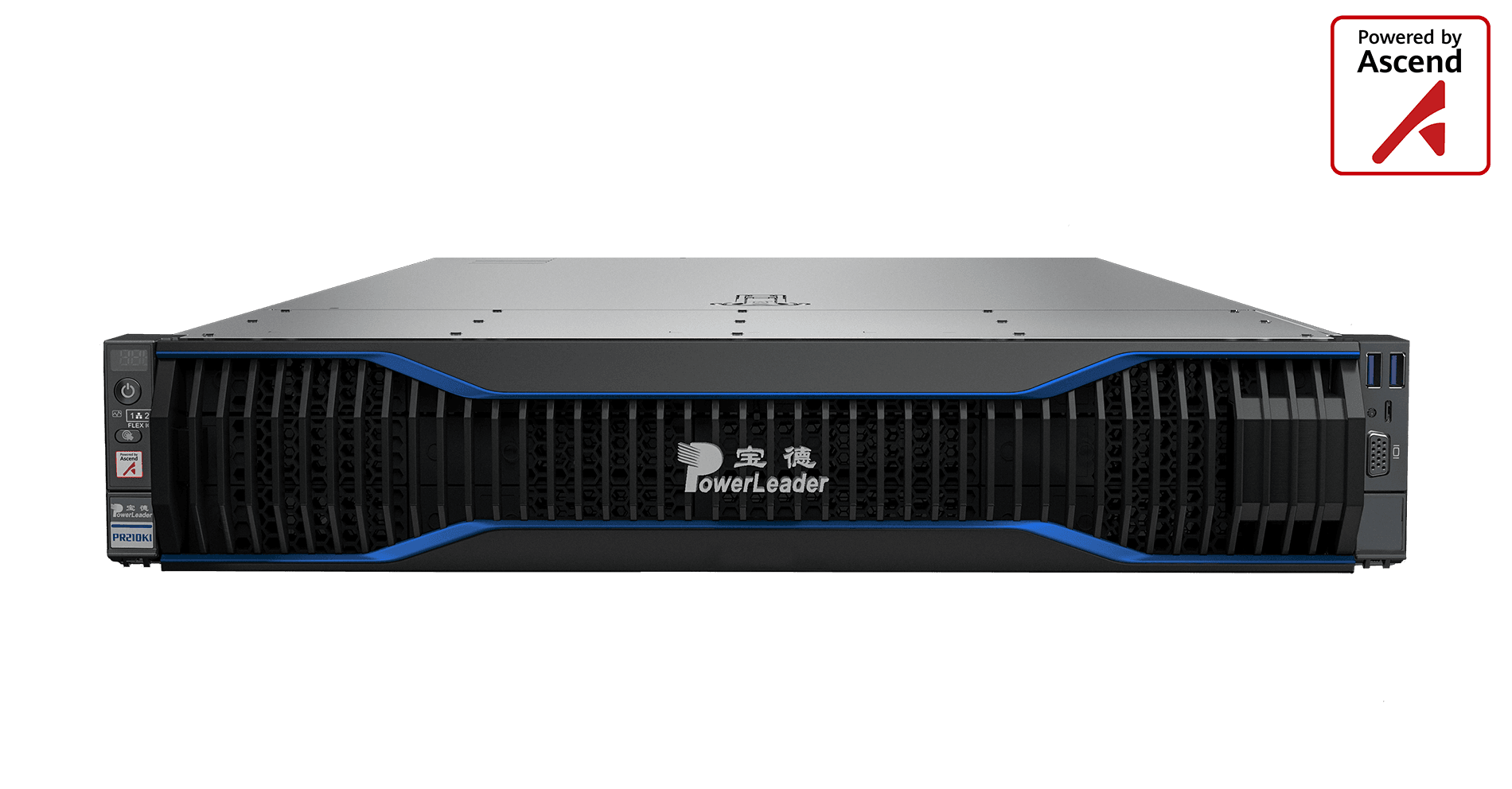

PowerLeader ZiQiang AI Inference Server PR210KI

PowerLeader ZiQiang PR210KI is a 2U rack-mounted server designed for information and communication technology (ICT) innovation, based on the domestic Kunpeng 920 processor (2 x Kunpeng 920 with 24/32/48/64 cores; 2.6GHz). It supports up to 8 Atlas single-slot, half-height, half-length PCIe standard cards, providing powerful real-time inference capabilities and video analysis capabilities. It is widely used in central AI inference scenarios.

Functional features
High Performance

Equipped with the Kunpeng 920 processor with supercomputing power, it can maximise the concurrent execution capability ofmulti-threaded applications and help users cope with heavier computingpressure;


Super Computing Power

PR210KI supports 8Atlas acceleration cards , providingreal-time analysis of 1024 channels of HD video (1080P 25FPS).


Highly Reliable

PR210KI provides data processing performance anddata protection functions, standard serial port, Web management interface andother rich configuration storage management methods.


Highly Efficient and Environmentally Friendly

Single card power consumption is only 72W, combinedwith the multi-core and highly efficient Kunpeng architecture, to build alow-power and high-energy-efficiency AI inference computing platform.


Technical specifications

Characteristic

PR210KI Technical Specifications

Form

Standard 19’, 2U Rack

CPU

2 * Kunpeng 920

Memory

8-channel DDR memory RDIMM with ECC calibration

Supports 32DIMM slots, up to 4096 GB memory capacity

Accelerator Card

Supports up to 8 Atlas 300I/V Pro inference cards or 8 Atlas 300I inference cards

Supports 2 Atlas 300T Pro training cards

Storage

25 * 2.5 SAS/SATA

12 * 3.5 SAS/SATA

8 * 2.5 SAS/SATA + 12 * 2.5 NVMe

RAID

Support RAID 0,1,5,6,10,50,60, support super capacitor power-down protection

Interface

Front: 2 * USB3.0 ports, 1 * VGA port

Rear:

2 * USB3.0 ports, 4/8 * 1GE RJ45 port, 4 * 25/10GE SFP+ port

1 * DB15 VGA port, 1 * RJ45 management serial port

1 * RJ45 management network port

PCI-E

Supports up to 9 PCIe 4.0 slots, including 1 dedicated for RAID cards and 8 standard PCIe expansion slots

PSUs

Default configuration includes 2 x 900W AC power modules with 1+1 redundancy. Supports 2 x hot-swappable 900W or 2000W AC power modules, also with 1+1 redundancy

OS

Supports a variety of operating systems including SUSE, Ubuntu, CentOS, UOS, ZhongBiao Kylin,Galaxy Kylin, Ningsi, Taishan Guoxin, Puhua, Hunan Kylin



Service and Support

PowerLeader provides nationwide joint warranty, and PowerLeader 's professional after-sales service outlets across the country provide "one-stop" service response and support.

- 3-year limited on-site warranty and on-site support

- 4008-870-872 hotline response and support

For more information: please visit: https://en.chtpcomposites.com/

Correspondence address: 16th Floor, Building B, Building 7, Baoneng Technology Park, No. 1 Qingxiang Road, Longhua District, Shenzhen


PowerLeader reserves the right to change product specifications or other product information (including but not limited to product weight, appearance, size or other physical factors) without notice; the information mentioned in this article may change due to product upgrades or other reasons. resulting in changes without prior notice. The product pictures involved in this article are subject to the actual product.
